Description

About this product
The HDZero ECO FPV System is designed to bring digital FPV to more pilots by offering a low-cost, lightweight, and durable alternative to analog video. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for.  This budget-friendly Air Unit is a groundbreaking product – it’s the first VTX/camera combination that utilizes an HD composite video signal, eliminating the need for a delicate MIPI cable.  The ECO FPV System was meticulously designed for ultra-lightweight drones like whoops, where every fraction of a gram counts. The camera’s huge 98-degree vertical FOV is perfect for fast indoor proximity flying. The ECO VTX weighs approximately 4.5g, while the camera (including wires) weighs about 1.6g. With the included 0.2g dipole antenna, the entire ECO Bundle weighs about 6.3g.
Features
720p Progressive Scan Video with Low Latency
Durable and Delicate Cable-Free
Composite HD Video Interface
Stable Color Reproduction
Lightweight Design at 6.3g
Affordable Digital FPV

Specifications
HDZERO ECO CAMERA
Dimensions: 14mm wide x 16 tall x 13mm thick
FOV: 4:3 D:150° H:120° V:98°
Weight: 1.6g with cable
CMOS sensor: 1/3”
Suggested Settings:
Sharpness: 15
Brightness: 45
Saturation: 8
R Surp: 8
HDZERO ECO VTX
HD Video Interface: Composite
RF Output: 25mW/200mW
Soft Mounting: 25 x 25 M2
Weight: 4.5grams
Thickness: 4mm
Input: 1S-3S

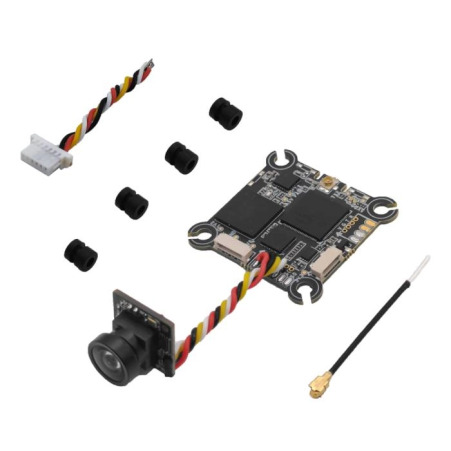

Includes
1x HDZero ECO Camera
1x HDZero ECO VTX
4x Grommets
1x Antenna
1x Cable
